RSV-1

The RSV-1 is a modular control valve that allows a diver to switch breathing gas supplies in less than a second.

The RSV-1 is particularly useful to a diver utilizing a full-face mask because it allows the diver to switch to their alternate air supply without discarding their mask (a valuable feature when diving in toxic or hazardous locations).

The RSV-1 takes less than 5 minutes to install. Simply remove the supply hose to your regulator and install the RSV-1 in-line.

The connection to your alternate supply can be achieved by either a "Quick Disconnect" or a threaded fitting.



With the white button down, the RSV-1 is on Primary gas. Release the safety clip and press the button on the bottom of the RSV-1 and you are on your alternate supply (which is indicated by the brightly colored band at the top of the RSV-1 shuttle.

With only one moving part, maintenance is easy. Simply freshwater rinse the RSV-1 along with your other dive gear. Dry the RSV-1 and remove only one screw in order to disassemble and grease the "O"-rings.

The RSV-1 is made from Delrin (a high tech engineering plastic from DuPont). The fittings are made from stainless and all "O"-rings are Viton.The three connection ports are identical, which allows the RSV-1 to be configured to suit the dive mission.

Adapters currently available for: Interspiro AGA mask, OTS Guardian, EXOxmask, and most standard regulators with a 9/16-18 thread. Quick disconnect fittings include: AGA, Seaquest Air Source, and Scuba ProAir 2 fittings.

Harness mount and customized fittings are available. The RSV-1 is intended for use by Public Safety, Military, Technical and Commercial Divers



Price$545.00

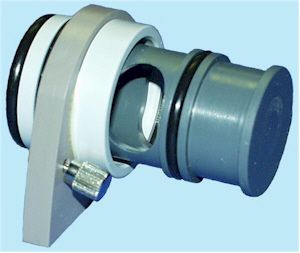

SBV-1

The SBV-1 allows a diver to breathe air directly into the Oral/Nasal Cavity of a full-face mask without the risk of CO2 buildup.

Price$355.00

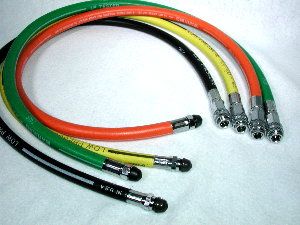

LP-16SQD

16" Air Source Hose x 3/8 -24 (for SPI-12)

Price$75.00
LP-32SQD

32" Air Source Hose x 3/8 -24

Price$102.00
LP-32SQDL

32" Air Source Hose x 3/8 -24 with ring lock to prevent accidental disconnection

Price$110.00
