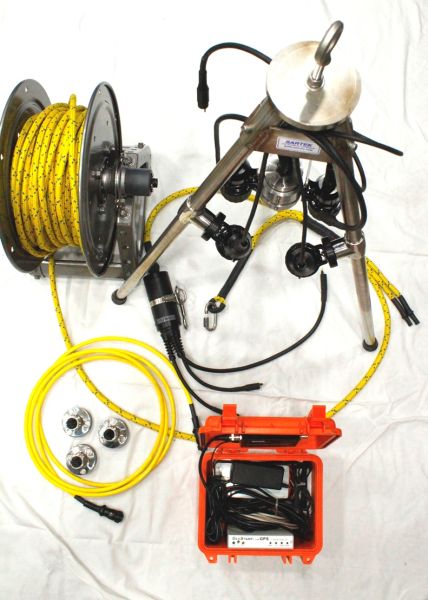

HIGH DEFINITION MARINE LIFE SCIENTIFIC STUDY VIDEO SYSTEM
Custom High Resolution Camera – 1080P TVI color camera in a 316 Stainless Steel housing, built in LED illumination, Wet Mate connector, depth rated to 1000’+
Custom 150’ Surface tether with 8 conductors, coax cable, water blocked, internal 2000 lb. test Kevlar cord, Polyurethane protective jacket and a 2000 lb. test Poly Over-Braid with Wetmate output connections.
Custom Rugged Powder Coated Steel Reel system with 8 conductor slip ring to permit continuous uninterrupted signal and tripod component control while deploying or retrieving the camera platform. Detachable rewind handle, adjustable tension brake system.
Custom Camera Tripod Platform- Hollow Tubular 316 Stainless Steel System with adjustable weighting (lead shot fillable and attachable external), Adjustable Position Camera Gimbal with 2 integrated, parallax adjustable, fixed position 532nm Wetmated lasers, 2 Adjustable position, 3600 lumen, 6000K LED Wetmated video lights, Components can be securely anchored when optimum preferred position is attained.
Waterproof Surface control box with System Master Power, Laser Power, Internal Camera Lights Power, External Side Illumination Power controls, High Definition 1080P TVI Video, Composite Video and HDMI outputs, PC controlled Text Overlay with GPS Data imbedded in a Composite Video Signal. System Power included options include: 90-260VAC 50/60Hz, 12VDC Mobile Power source (cigarette lighter outlet) and Internal Rechargeable NIMH 13.5VDC 9AH battery.
